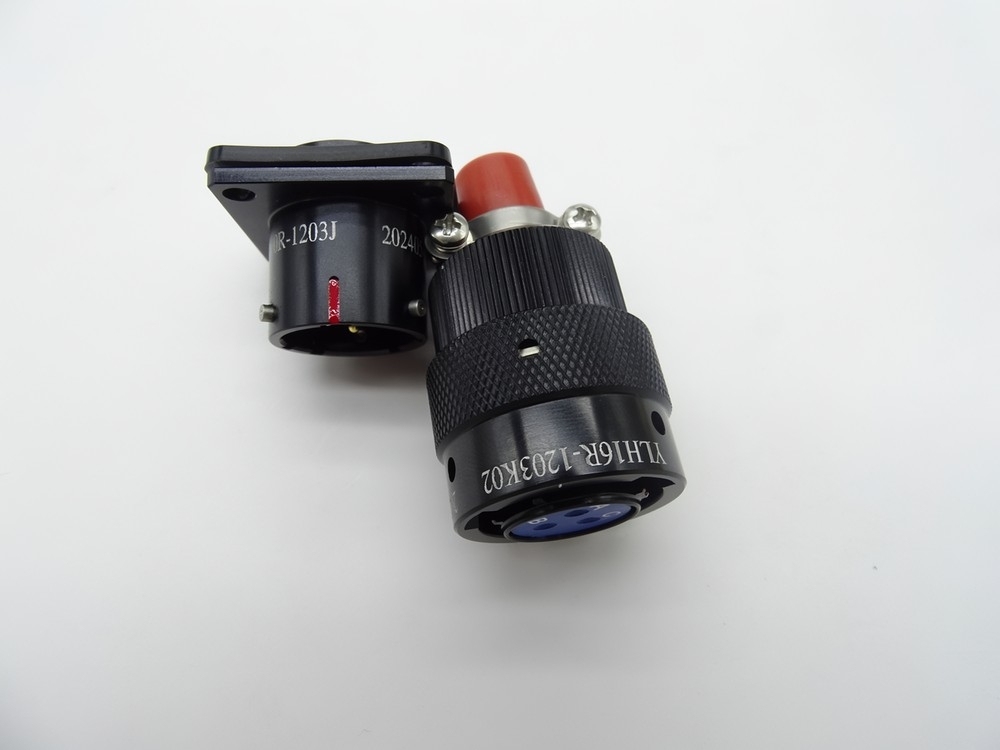

YL Series Circular Electrical Connectors: Engineered for Robust Connectivity in Demanding Environments

Introduction

In an era where reliable electrical connectivity forms the backbone of industrial operations, the YL Series Circular Electrical Connectors stand as a paragon of precision engineering and unwavering performance. Designed to meet the rigorous demands of modern industrial applications, these connectors deliver secure, efficient, and long-lasting connections critical for system integrity.

Technical Specifications & Design Excellence

The YL Series embodies meticulous design principles focused on durability and operational efficiency:

• Robust Construction: Manufactured from high-grade engineering thermoplastics and corrosion-resistant metal alloys ( brass or stainless steel), the housings provide exceptional mechanical strength and resistance to impact, vibration, and environmental stressors.
• Superior Sealing Performance: Achieving ingress protection of up to IP67/IP68 (when mated), the connectors are effectively sealed against dust, moisture, and high-pressure water jets, ensuring reliable operation in harsh conditions.
• Optimized Contact System: Features precision-machined contacts (available in brass or phosphor bronze, often with gold or silver plating) ensuring low contact resistance (< 10manging from 2A to 40A+ depending on contact size), and excellent signal integrity. Various contact configurations (e.g., 3, 4, 5, 6, 8, 12, 19-pin) cater to diverse power and signal needs.
• Secure Locking Mechanism: Incorporates a bayonet, screw, or push-pull locking system (model dependent) guaranteeing a vibration-proof, positive mating connection that prevents accidental disengagement.
• Extended Operational Life: Engineered for high mating cycles (typically exceeding 5000 cycles), minimizing downtime and maintenance costs.
• Wide Temperature Range: Operates reliably within an extensive temperature spectrum, commonly -40°C to +85°C or higher for specialized variants.
• EMI/RFI Shielding: Optional 360° shielding provides effective protection against electromagnetic interference (EMI) and radio-frequency interference (RFI), crucial for sensitive electronic equipment.

Key Advantages Driving Performance

• Unmatched Reliability: Engineered to withstand extreme environments – from factory floors and offshore platforms to mobile machinery and outdoor installations – ensuring continuous operation.
• Simplified Installation & Maintenance: User-friendly design allows for quick mating/de-mating and facilitates field servicing, reducing labor time and costs. Color-coding and keying options prevent mismating.
• Versatility: Available in various shell sizes (e.g., M8, M12, M16, M23), contact arrangements, and termination styles (solder, crimp, PCB mount, wire-to-wire, wire-to-panel), offering solutions for countless interconnection challenges.
• Safety Compliance: Designed and tested to meet relevant international safety and performance standards (e.g., IEC, UL, CE - specific certifications depend on model and region), ensuring user safety and regulatory adherence.

Target Applications

The YL Series Circular Connectors excel in sectors demanding robust and dependable connectivity:

1. Industrial Automation & Robotics: Connecting sensors, actuators, motors, drives, PLCs, and control cabinets on production lines and robotic arms.
2. Heavy Machinery & Mobile Equipment: Providing power and signal connections for construction, agricultural, and forestry machinery exposed to severe shock, vibration, and weather.
3. Transportation: Used in railway systems, commercial vehicles, and marine applications for lighting, control systems, and engine components.
4. Renewable Energy: Interconnecting components in solar power installations and wind turbines, enduring UV exposure & Instrumentation:** Facilitating reliable data and power transmission in chemical plants, refineries, and water treatment facilities.

Why Choose the YL Series?

Selecting the YL Series Circular Electrical Connectors translates into tangible operational benefits:

• Enhanced System Uptime: Minimize failures caused by poor connections or environmental damage.
• Reduced Total Cost of Ownership: Durable construction and long service life lower replacement and maintenance expenses.
• Future-Proof Solutions: Adaptable configurations and adherence to industry standards ensure compatibility with evolving technologies.
• Global Support & Availability: Backed by comprehensive technical chain logistics.

Conclusion

The YL Series Circular Electrical Connectors represent more than just a component; they are a critical investment in the reliability and efficiency of your electrical systems. Engineered to perform under pressure and built to last secure, high-performance connectivity essential for success in today's Series can elevate the reliability of your next project. Contact our technical sales team today for detailed specifications, application consultation, or to request samples
