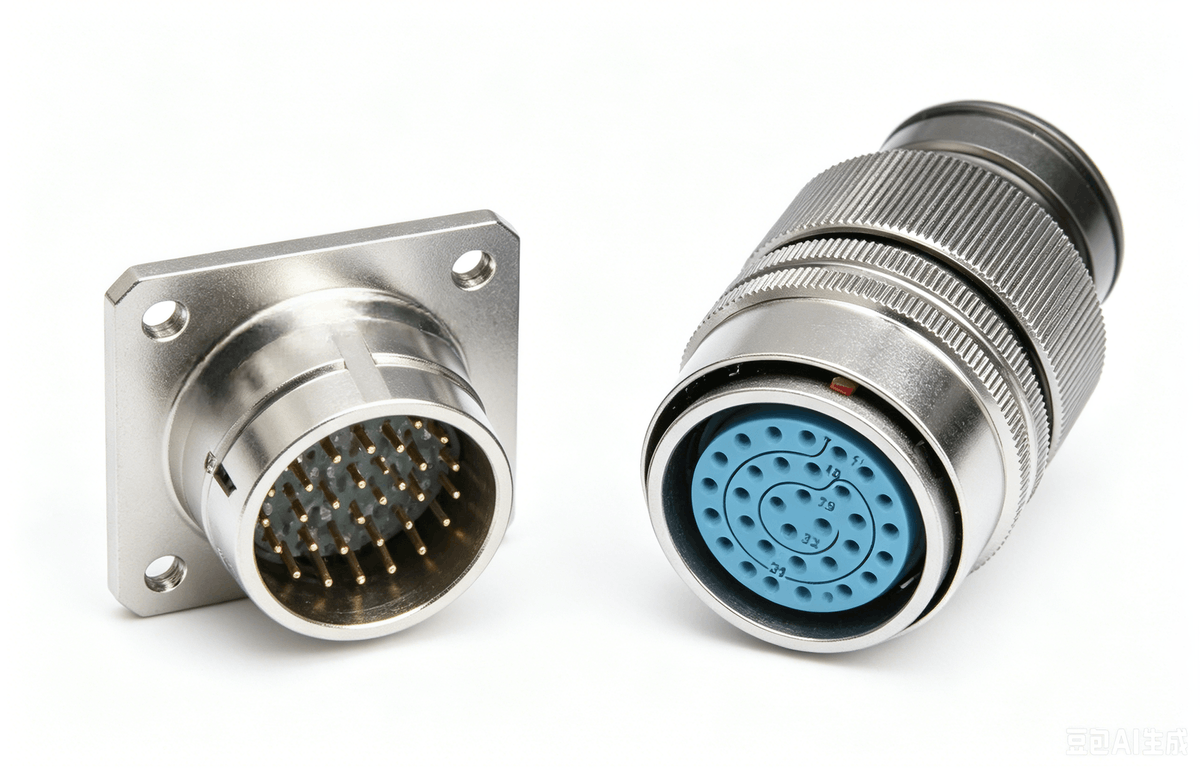

Y3A Series Circular Electrical Connectors: Robust Connectivity Solutions for Demanding Environments
Introduction
In the realm of industrial and heavy-duty applications, reliable electrical connectivity is paramount. The Y3A Series Circular Electrical Connector stands as a testament to engineering excellence, designed to deliver uncompromising performance in challenging conditions. This comprehensive overview delves into the technical specifications, key features, and diverse applications of the Y3A Series, highlighting why it is the connector of choice for industries demanding durability, safety, and efficiency.
Key Features and Technical Specifications
1. Robust Construction and Material Excellence
- Housing Material: Constructed from high-grade engineering thermoplastics or corrosion-resistant metal alloys (optional), offering exceptional mechanical strength and environmental resistance.
- Sealing Performance: Features advanced IP68/IP69K-rated sealing technology, ensuring protection against dust, water ingress, and high-pressure washdowns. Ideal for outdoor, marine, or washdown environments.
- Temperature Range: Operates reliably within a broad temperature spectrum (-40°C to +125°C), maintaining performance integrity in extreme thermal conditions.
- Current Rating: Supports high current-carrying capacities (up to 30A per contact), catering to power transmission needs in heavy machinery and equipment.
- Voltage Rating: Rated for voltages up to 250V, suitable for both signal transmission and power applications.
- Contact Design: Precision-engineered contacts (gold-plated or silver-plated options) ensure low contact resistance, high conductivity, and resistance to fretting corrosion.
- Safety Compliance: Meets international safety standards (e.g., UL, CE, RoHS), incorporating features such as polarized mating, keyed coupling, and secure locking mechanisms to prevent accidental disconnection.
3. Versatility and Modularity

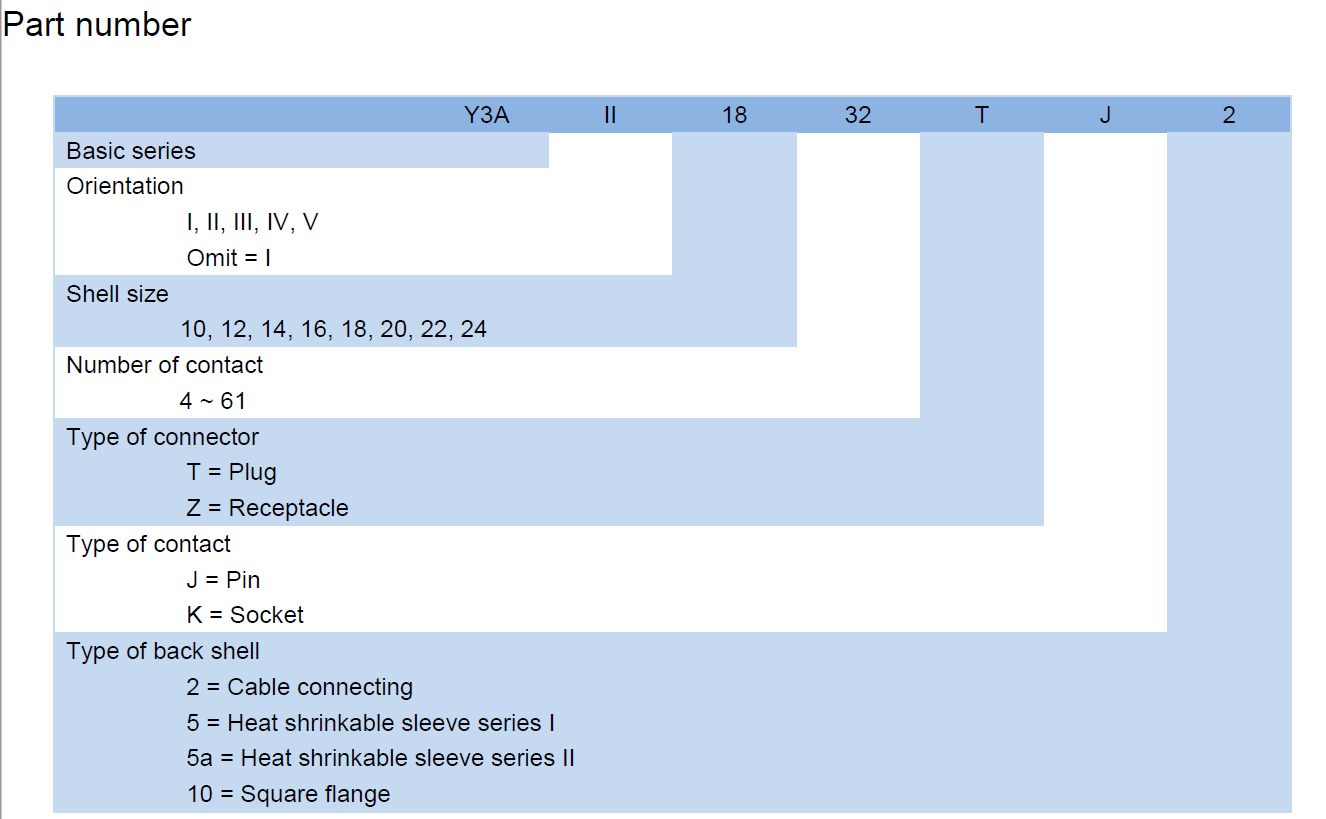

- Contact Arrangements: Available in multiple pin configurations (e.g., 3-pin, 4-pin, 6-pin, 12-pin), allowing customization to specific circuit requirements.
- Mounting Options: Supports panel-mount, cable-mount, and flange-mount configurations, offering flexibility in system integration.
- Accessory Compatibility: Compatible with a range of accessories including protective caps, mounting brackets, and cable glands, enhancing installation versatility.
4. Ease of Use and Maintenance
- Tool-Free Assembly: Features user-friendly, tool-free contact insertion systems, reducing installation time and complexity.
- Quick-Connect Coupling: Ergonomic bayonet or threaded coupling mechanisms ensure secure, vibration-resistant mating with minimal effort.
- Field-Repairable Design: Modular components allow for easy field maintenance and contact replacement, minimizing downtime and operational costs.
Applications Across Industries
The Y3A Series Circular Connector excels in environments where reliability cannot be compromised:
- Industrial Automation: Robotics, CNC machinery, and automated production lines requiring secure power and signal transmission.
- Transportation: Railway systems, electric vehicles (EV), and marine applications exposed to moisture and vibration, wind turbines, and battery storage systems operating in harsh outdoor conditions.
- Agricultural and Construction Machinery: Heavy-duty equipment subjected to dust, mud, and mechanical stress.
- Medical and Laboratory Equipment: Devices demanding hygienic, sealed connections for critical operations.
Why Choose the Y3A Series?
The Y3A Series integrates cutting-edge engineering with user-centric design, delivering:
- Long-Term Reliability: Proven durability in corrosive, high-vibration, and extreme-temperature environments.
- Reduced Total Cost of Ownership: Low maintenance needs and extended service life enhance operational efficiency.
- Scalability: Modular design supports future upgrades and system expansions.
- Global Compliance: Adherence to international standards ensures global market applicability.
Conclusion
For engineers and procurement specialists seeking a circular connector that combines ruggedness, electrical efficiency, and design flexibility, the Y3A Series offers a compelling solution. Its ability to perform under pressure while ensuring operational continuity makes it an indispensable component in mission-critical systems worldwide.
Ready to integrate the Y3A Series into your next project? Contact our technical team today for customized solutions and competitive quotations.
