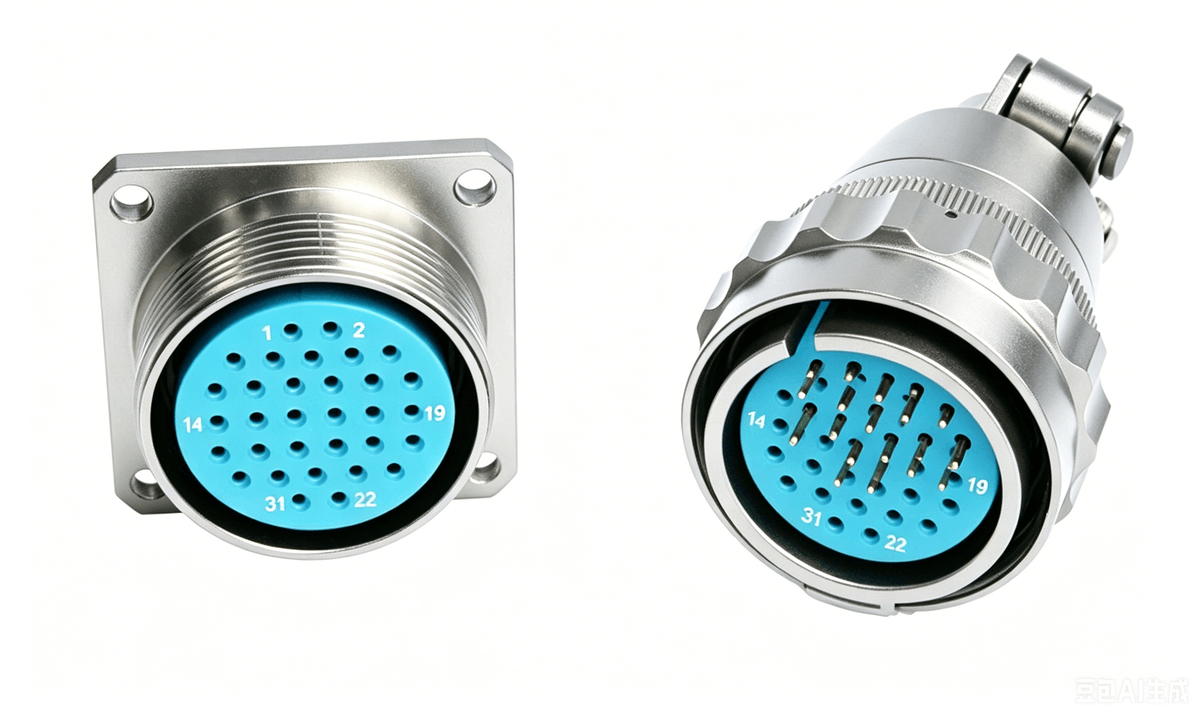

Y2PX Series Circular Electrical Connector: Engineered for Robust Connectivity in Demanding Environments
Introduction
The Y2PX series circular electrical connector represents a significant advancement in interconnection solutions designed for industrial and harsh environment applications. Engineered with precision and reliability at its core, this connector series offers unparalleled performance in scenarios where durability, signal integrity, and environmental protection are paramount. Developed to meet the evolving needs of modern industries, the Y2PX series integrates cutting-edge design principles with rigorous manufacturing standards.
Technical Specifications and Design Features
Robust Construction
- Material Excellence: Utilizing high-grade thermoplastics and corrosion-resistant metal alloys, the Y2PX connectors withstand extreme temperatures (-40°C to +125°C) and resist chemicals, UV radiation, and abrasion.
- IP68/IP69K Protection: Achieves complete dust-tightness and protection against high-pressure water jets, making it ideal for washdown environments or outdoor applications.
- Vibration and Shock Resistance: Precision-engineered locking mechanisms ensure secure mating even under continuous vibration (up to 20g) and mechanical shock.
- Voltage and Current Ratings: Supports up to 250V AC/DC and 5A per contact, accommodating a wide range of industrial power and signal requirements.
- Contact Options: Available in 3 to 12 positions with gold-plated brass contacts for low-resistance connections (<10mΩ) and superior signal transmission.
- EMI/RFI Shielding: Integrated 360° shielding provides effective electromagnetic interference protection, critical for sensitive electronic equipment.
User-Centric Design
- Keyed Coupling: Prevents misalignment during mating, reducing installation errors and connector damage.
- Color-Coded Housing: Facilitates quick visual identification in complex wiring systems.
- Tool-Free Assembly: Field-installable design allows for rapid cable termination without specialized tools.
Target Applications
The Y2PX series excels in applications demanding reliability under challenging conditions:
- Industrial Automation: Robotics, PLC systems, motor controls, and sensor networks
- Transportation: Railway signaling, electric vehicles, and marine electronics
- Energy Sector: Solar inverters, wind turbine controls, and battery management systems
- Outdoor Equipment: Agricultural machinery, construction vehicles
- Medical Devices: Diagnostic equipment requiring sealed connections
Competitive Advantages
- Extended Service Life: Rated for >1,000 mating cycles, significantly reducing maintenance costs
- Global Compliance: Meets IEC 61076-2, UL, and RoHS standards for worldwide acceptance
- Customization Capabilities: Tailored configurations available for specific pin arrangements, cable exits, and special environmental requirements
- Time-to-Market Acceleration: Compatible with automated assembly processes for high-volume production
Value Proposition
By implementing the Y2PX series, engineers gain:
- Risk Mitigation: Reduced failure rates in critical connections
- Integrity**: Maintained signal quality in electrically noisy environments
- Total Cost Reduction: Lower replacement frequency and minimized downtime
- Design Flexibility: Scalable solutions from prototype to mass production
Conclusion
The Y2PX series circular electrical connector delivers a sophisticated blend of ruggedness, electrical performance, and design intelligence. As industries continue to push operational boundaries, this connector series provides the reliable backbone for next-generation electrical systems. For detailed technical documentation, customization options, or application-specific recommendations, we invite you to contact our engineering team to explore how the Y2PX series can enhance your connectivity solutions.
